Fiducials and equipment for reproduction

- -0.3°C to +0.3°C

- This dedicated apparatus has more than 35 years of proven use and is widely used by the worlds’ leading NMIs.

- Maintains Four WTP Cells

- Solid State Vibration Free Cooling - Quieter Operation

- Lower Energy Consumption / Operating Costs

- Holds up to Four Cells

- 250°C to 1200°C

- Ideal for Creating and Maintaining Fixed Points Cells, Indium to Copper. The furnace has been updated with additional features to make operation simpler and safer.

- Widest Operating Range

- Three Zone Control

- Long Plateau Length

- Metal Clad Fixed-Point Cells From Mercury to Aluminium. Bring your Calibrations Back Under your Own Control

- Ultra Pure >99.9999% 6N

- 35 Year Plus History

- For Optimal Realisations

- -25°C to 140°C

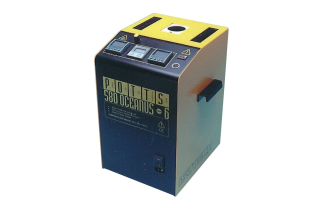

- The multi-functions of the Oceanus-6 is a unique concept from Isotech, so unique that it is currently the subject of a patent application.

- Use with Water and Gallium Fixed Points

- Can also be used as a Dry Block, Liquid Bath

- 30°C to 700°C

- Isotech has a wide range of Dry Blocks to suit probes requiring deeper immersion. This dry block temperature calibrator features large and deep calibration volumes. As such, it is less portable than earlier Dry Blocks, but has a higher capacity and retains outstanding temperature uniformity.

- High Capacity Deep Block

- Use for Comparison and Fixed Point Calibration

- Use with very long thermometers

- 65°C below ambient to +140°C

- The multi-functions of the Europa-6 is a unique award winning concept from Isotech.

- Use with Mercury, Water or Gallium Cells

- Multi-Function Calibration Device

- Portable

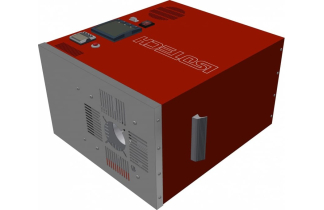

- 450°C to 1100°C

- Model 426 is for Aluminium, Silver, Gold or Copper slim fixed point cells as well as for comparison calibration.

- 50 x 300mm Calibration Volume

- Compact Heatpipe Furnace

- Suits Aluminium, Silver or Copper Fixed Points

- Can be used for comparison and infrared calibration

- 450°C to 1100°C

- Model 426 is for Aluminium, Silver or Copper slim fixed point cells as well as for comparison calibration. Heatpipes provide the ideal conditions for the creation and maintenance of slim ITS-90 cells.

- 50 x 300mm Calibration Volume

- Compact Heatpipe Furnace

- Suits Aluminium, Silver or Copper Fixed Points

- Can be used for comparison and infrared calibration

- A filling tube allows liquid nitrogen to initially cool this volume to approximately -195°C

- The Isotech Argon Triple Point Apparatus is a robust, simple to use and affordable solution for the realisation of the argon triple point.

- Affordable

- Robust and simple to use

- Accurate to ±0.5mK - 4 hour plateau typical

- Mercury Triple Point: -38.8344°C

- The Isotech Mercury Cell Model 17724 is constructed in a rugged, sealed stainless steel enclosure allowing the triple point of -38.8344°C to be realised both easily and safely.

- Uncertainty 0.000220°C

- Rugged Stainless Steel Construction

- 7N Pure

- The cryostat temperature is adjustable from -36°C to -42°C.

- The Isotech Model ITL-M-17725 apparatus is a self-contained, mechanically-refrigerated, system with a main well to house one mercury cell and two auxiliary wells for pre-chilling of thermometers.

- Simple to use, safely melt and freeze Hg Cell

- Purpose Designed for Isotech Mercury Cell

- Outstanding Convenience and Safety

- Liquid free

- Covering 30°C to 550°C, 45 x 285mm Volume

- Isotech has a wide range of Dry Blocks to suit probes requiring deeper immersion. This dry block temperature calibrator features large and deep calibration volumes. As such, it is less portable than earlier Dry Blocks, but has a higher capacity and retains outstanding temperature uniformity.

- High Capacity Deep Block

- Use for Comparison and Fixed Point Calibration

- Use with very long thermometers
